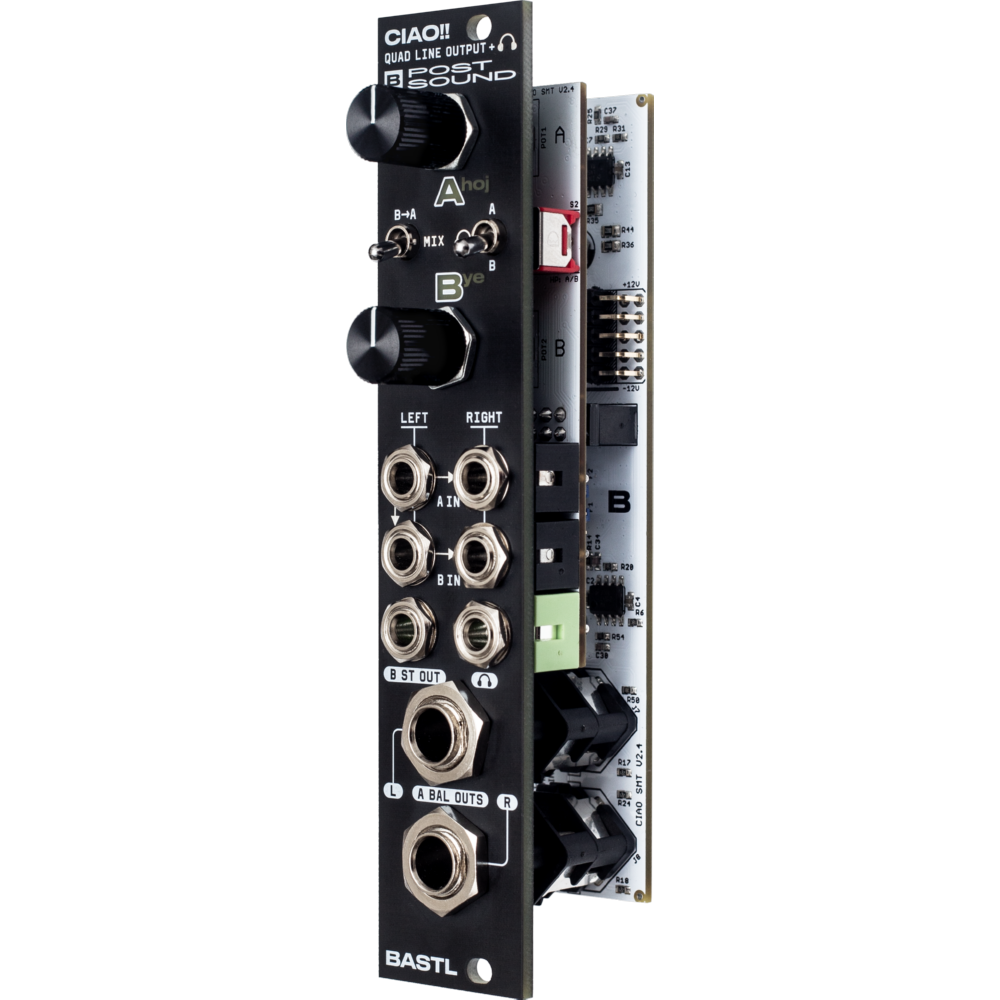

Ciao!! is a compact and performance-oriented output module built with high-quality, low-noise components and layout for the best possible modular-to-line level conversion.
It features 2 stereo line outputs, a headphone amplifier, and has a few tricks up its sleeve.
FEATURES
2 stereo channels A and B
Channel A output features 6.3mm (¼”) balanced jacks
Channel B output features 3.5mm (⅛”) stereo jack
Dedicated level controls for each channel
Signal indication with line-level clip detection
Clever input normalisation
Headphone output with a channel-select switch
Stereo mix switch to mix Channel B into Channel A
Back jumper for customising the normalisation path
TECHNICAL DETAILS
size: 5 HP
current consumption: <190 mA
depth: 29 mm
input impedance: 100 kΩ
output impedance: 220 Ω
headphone impedance: 8–250 Ω
